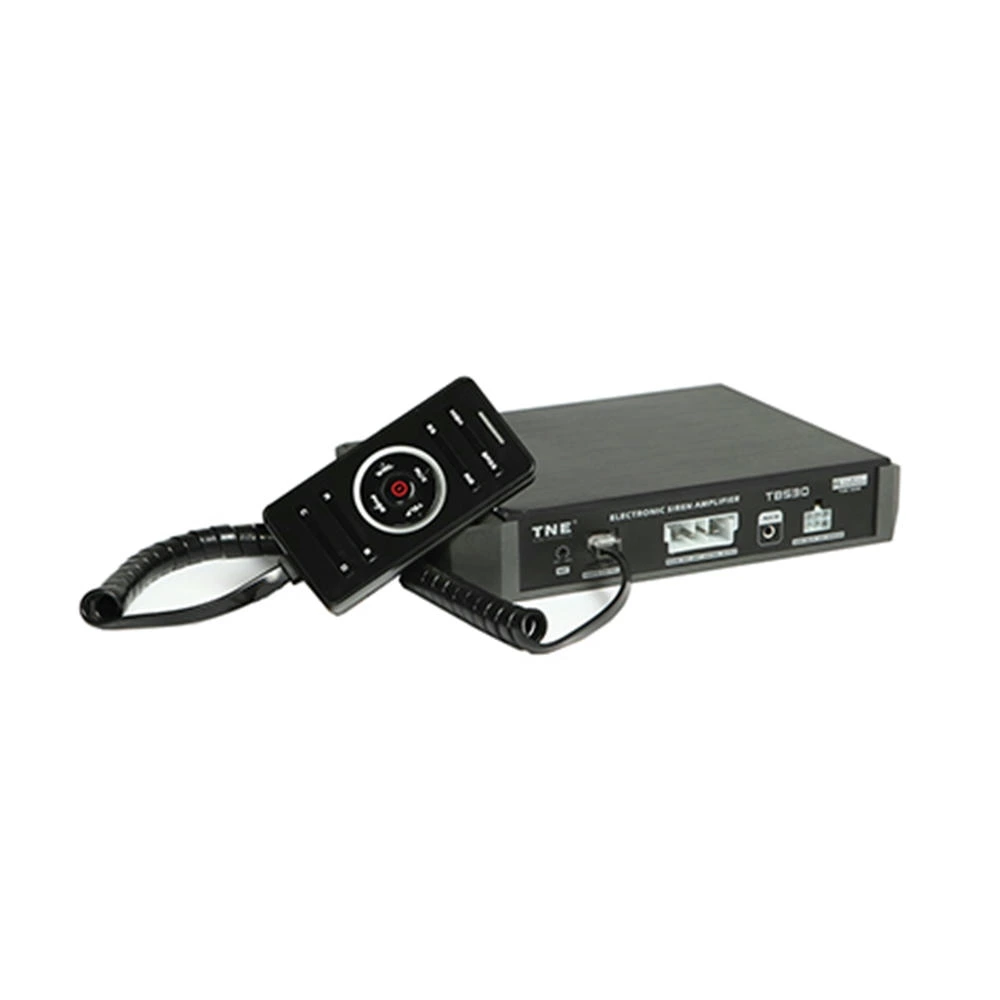

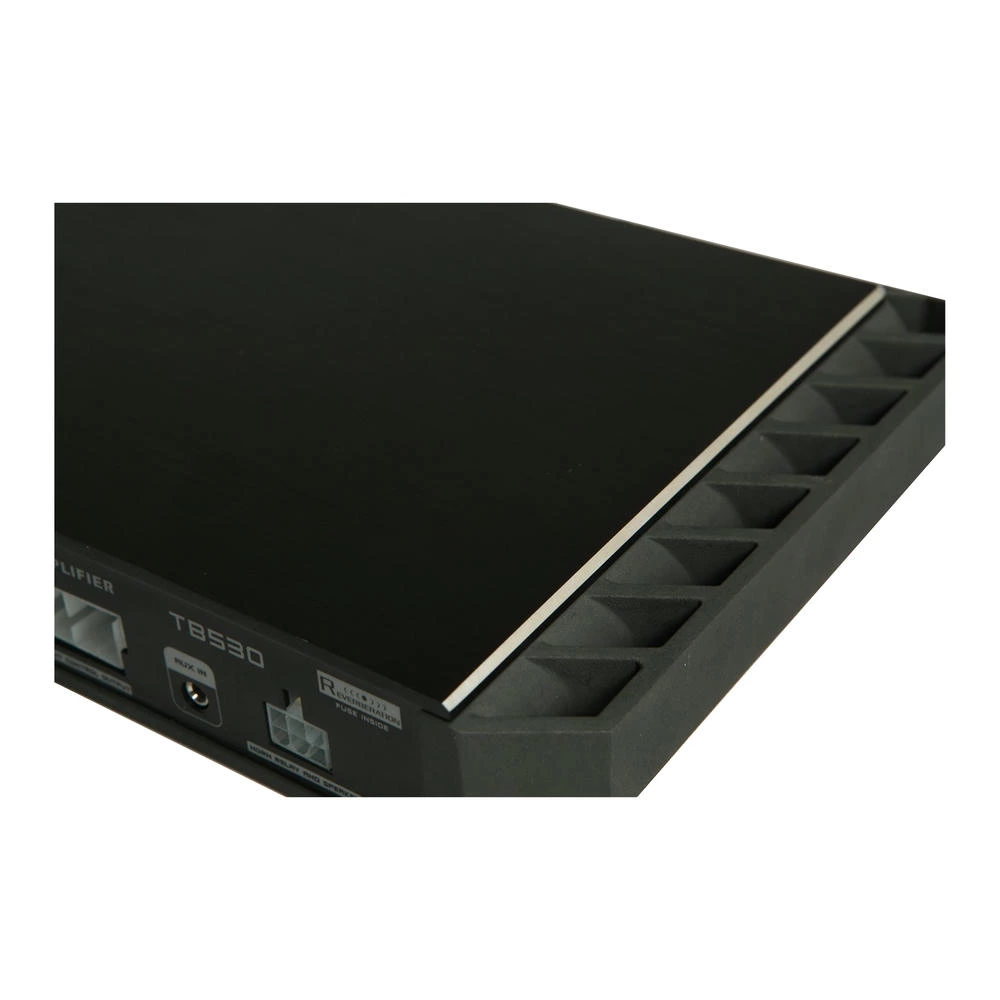

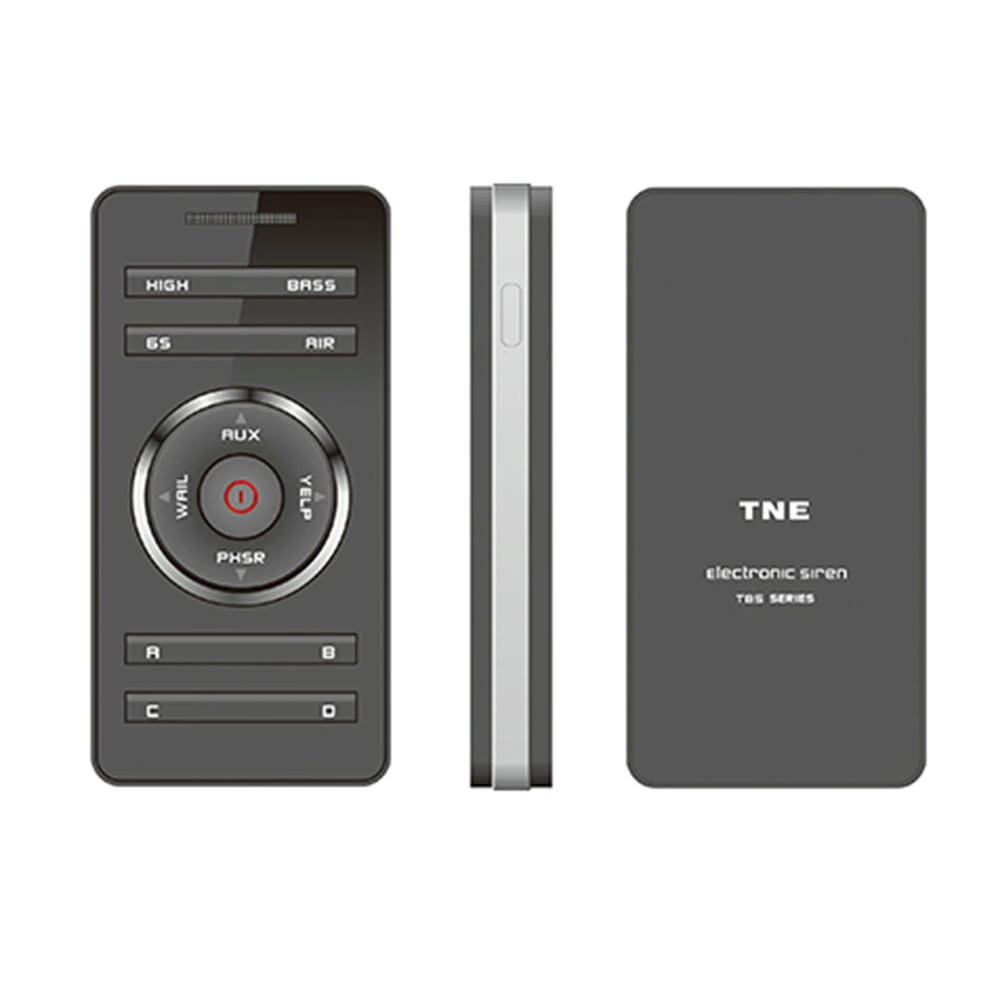

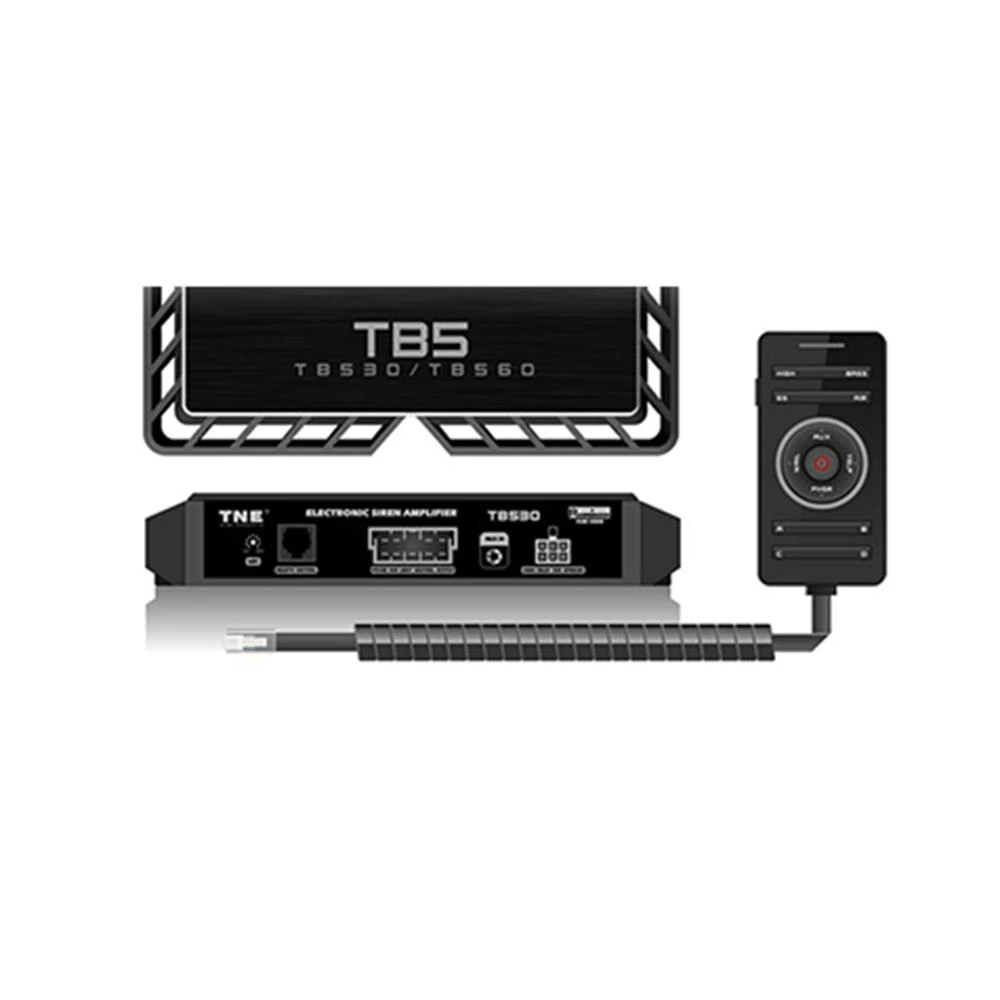

TB530 is precision built, efficient and economical full-featured electronic siren of advantage design. Adopt micro SCM to control the electronic, capability stabilization, credibility and long life. It can provide many tones so that work in different vehicles and occasions. TB-530 using 300 watt high-power output, make the sound transmit wider. The amplifier box contains two separate amplifiers that allow to operate two separate and distinct tones at the same time. The panel provides indicating function of illumination which enables the siren to be operated in any dark environment. Four way light control, can connect the input of auxiliary tone. Adopting fission instruction and easy to installation
| Model | TB-530 | TB-560 |
| Input Voltage | DC12V | DC12V |
| Operating Voltage | DC10.5 ~ 14.5V | DC10.5 ~ 14.5V |
| Input Current | 22A | 35A |
| Light Control | 4 | 4 |
| Light Control Current | 10A*4 | 10A*4 |
| Output Power | 150W*2 | 150W*4 |
| Output Impedance | 11Ω*2 | 11Ω*4 |

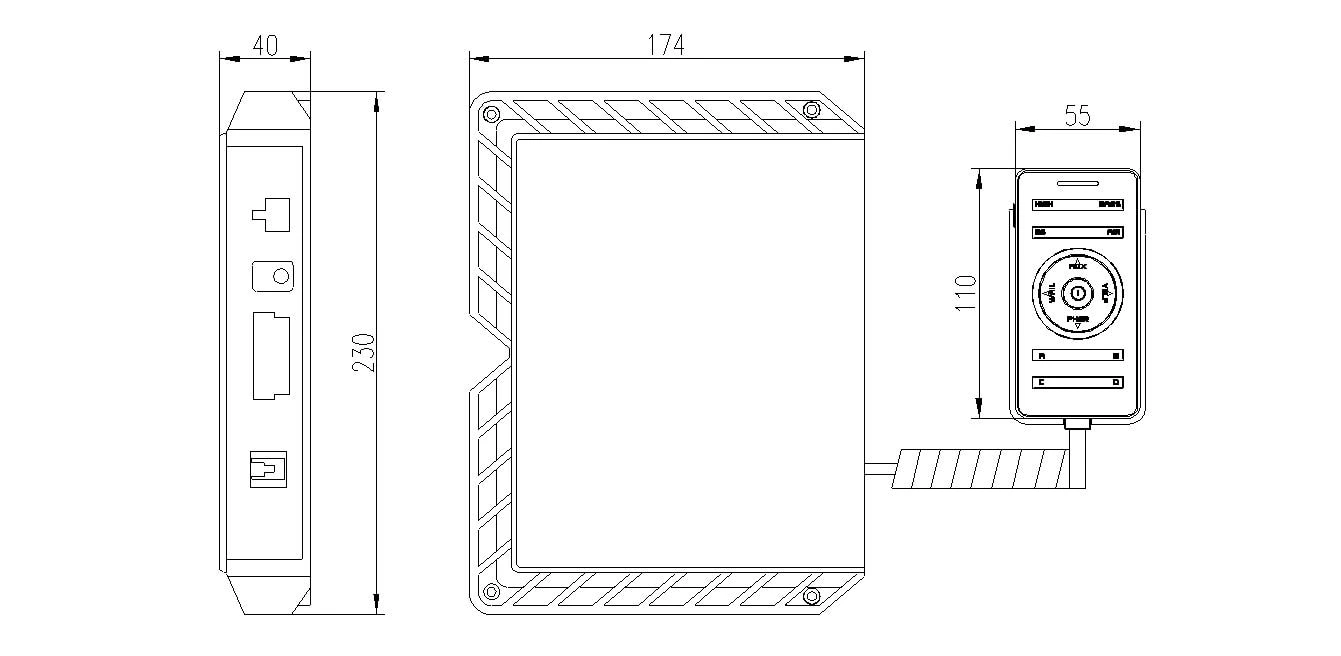

| Amplifier Dimension | 230*174*40mm | 230*174*40mm |
| Control Dimension | 110*55*14mm | 110*55*14mm |
| Police Audio Frequency | 500Hz ~ 1850Hz | 500Hz ~ 1850Hz |
| Installation From | Fission | Fission |
| Net Weight | 2.0KG | 2.1KG |
| Gross Weight | 3KG | 3.1KG |
| Packaging Dimension | 380*292*85mm | 380*292*85mm |
