TB 6 is a precision built, efficient and economical full-featured electronic siren of advanced design
using 150 /300 watt high-power output, make the sound transmit wider
Adopt micro SCM to control the electronic, more stabilization
Dual- tone feature allow the user to operate two separate and distinct tones at the same time
The panel of this siren provides indicating function of illumination
two way light control provided, easily control the external lights
Fission instruction for easy installation
| Model | TB-615 | TB-630 |
| Input Voltage | DC12V | DC12V |
| Operating Voltage | DC10.5 ~ 14.5V | DC10.5 ~ 14.5V |
| Input Current | 11A | 22A |
| Light Control | 2 | 2 |
| Light Control Current | 10A*2 | 10A*2 |
| Output Power | 150W | 300W |
| Output Impedance | 11Ω | 11Ω*2 |

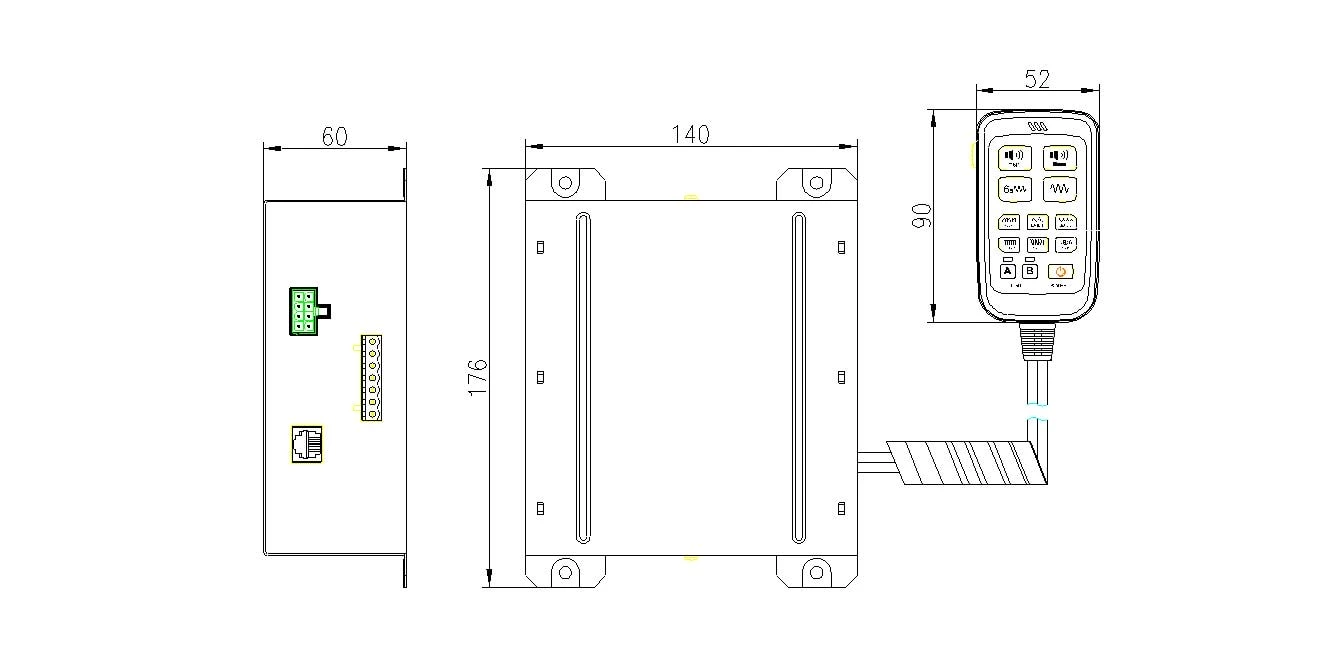

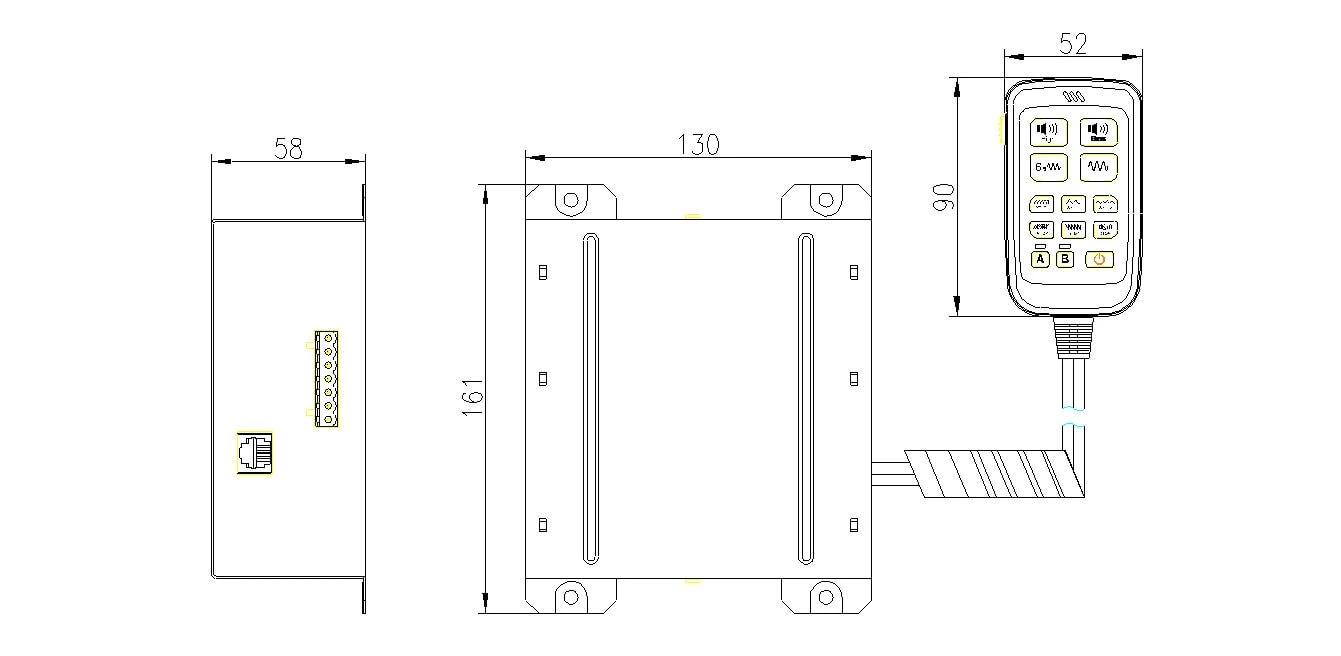

| Amplifier Dimension | 161*130*58mm | 176*140*60mm |
| Control Dimension | 90*52*20mm | 90*52*20mm |
| Police Audio Frequency | 500Hz ~ 1850Hz | 500Hz ~ 1850Hz |
| Installation From | Fission | Fission |
| Net Weight | 2.0KG | 3.0KG |
| Gross Weight | 2.5KG | 3.5KG |
| Packaging Dimension | 228*216*158mm | 228*216*158mm |
